STANDARD FEATURES

AXLES	DEXTER 10,000LB GENERAL DUTY
BRAKE	(2)ELECTRIC BRAKES
COUPLER	30K 2 5/16" ADJUSTABLE COUPLER
CROSS MEMBER	3" CHANNEL 20" CENTERS
FENDERS	N/A
FLOOR	2"X6" TREATED WOOD FLOOR
FRAME FLOOR	6" CHANNEL
FRAME MAIN	12" I-BEAM 19LB(UP TO 32') 22LB(32' AND UP)
FRAME NECK	I-BEAM
JACK	(2)12,000LB SPRING LOADED DROP LEG JACK
LIGHTS	LED LIGHTS ENCLOSED STEEL BOXES
MOUNT	SPARE TIRE MOUNT RECESSED IN NECK
PAINT	* PPG URETHANE 4:1 PAINT
RAILING	N/A
RAMP	OPTIONAL FOR FLAT DECKS
SAFETY	DOT REFLECTIVE TAPE/ 1/4" SAFETY CHAINS
STORAGE	FRONT TOOLBOX WITH LOCKABLE LID
TIE DOWN	STAKE POCKETS ON 24" CENTERS WITH RUB-RAIL
TIRES	(8) 235/80/R16 10-PLY
TONGUE	N/A
WHEELS	16" SILVER DUALLY WHEELS (8-LUG)
WIRING	SEALED HARNESS RAN THROUGH FRAME

OPTIONAL FEATURES

12K AXLE UPGRADE HYDRAULIC DISC BRAKE (exchange)

12K AXLE UPGRADE HYDRAULIC DRUM BRAKE (exchange)

12K AXLE UPGRADE ELECTRIC BRAKE (exchange)

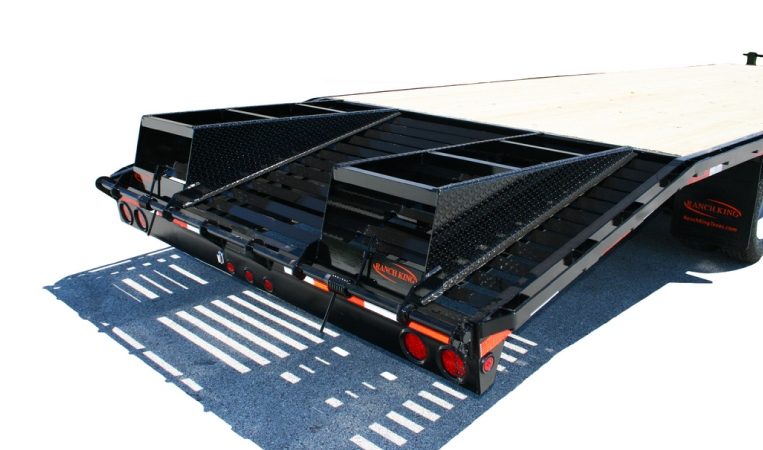

5' 2"X2"X3/16" ANGLE IRON DOVETAIL (2) FOLD UP RAMPS

5' WOOD DOVETAIL (2) SPRING ASSIST FOLD UP RAMPS

SLIDING RATCHET 4" STRAP

SLIDING RATCHET TRACK

ADD 3RD 7K AXLE (electric)

PIERCE BEAM

7'-9' SLIDE IN RAMPS AVAILABLE FOR NON DOVETAIL TRAILERS

HYDRAULIC JACK OPTION UPGRADE

ELECTRIC JACK OPTION UPGRADE

17.5" WHEELS AND 16 PLY TIRES UPGRADE (exchange)

235/85/R16 14 PLY TIRE UPGRADE (exchange)

HYDRAULIC DISC BRAKE UPGRADE

HYDRAULIC DRUM BRAKE UPGRADE

HD 4.27 STEEL GRATE EXPANDED METAL FLOOR

1/8" DIAMOND PLATE FLOOR

3/8" D-RINGS (specify location)
